New 😀 Your Grow Room Growers Choice Master Lighting Controller ⌛

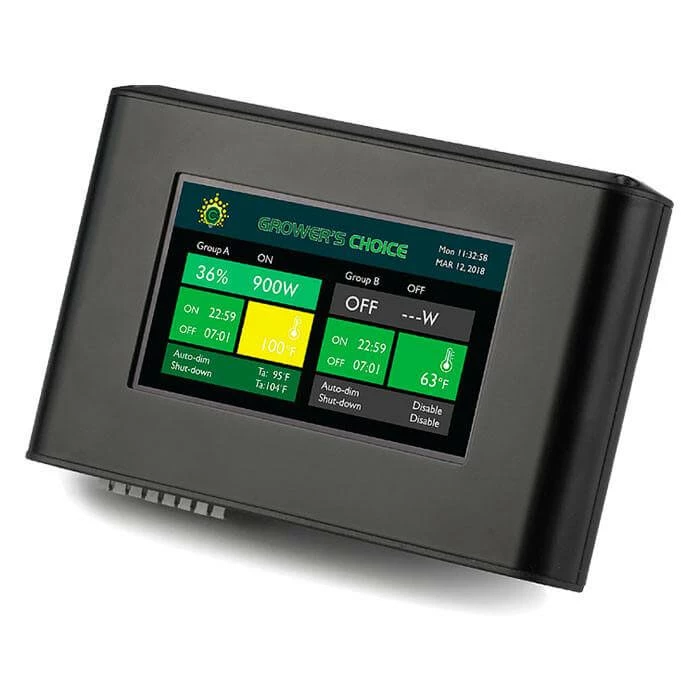

Grower’s Choice digital lighting controller enables the grower to control up to 200 fixtures.

It is compatible with the new ROI-E720 LED grow light, ROI-E680, ROI-E420, ROI-E200, and all GC-315 CMH, GC- 630NS CMH and GC-1000 DE fixtures. This dual-channel controller allows daisy chaining up to 100 fixtures per zone (2 zone options).

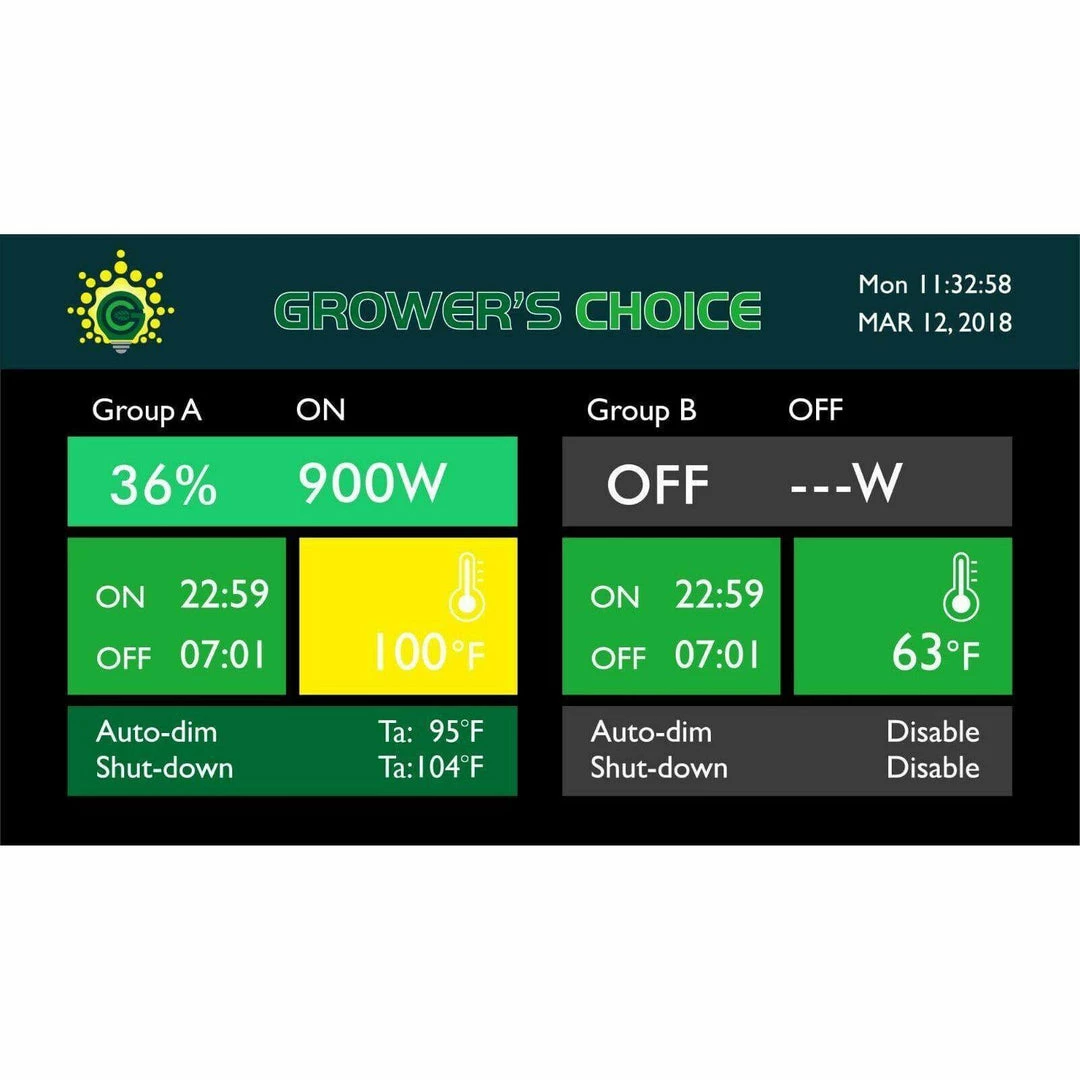

Enabling complete control of your growing environment with timed on/off switching, sunrise/sunset, and precise temperature readings with dual thermal probes and thermal-threshold auto dim-shutdown for additional protection.

• Output range: 10%~115%
• Numbers of ballasts per output: 100 Max
• Max cable length per group: 100M
• Control voltage outputs: 2 group, A/B
• Temperature sensor: 2 group, A/B
• Over heat protection: Yes
• Sunrise/sunset period: Yes
• Setup ballast type: 1000W/945W/750W/630W/600W/500W/315W

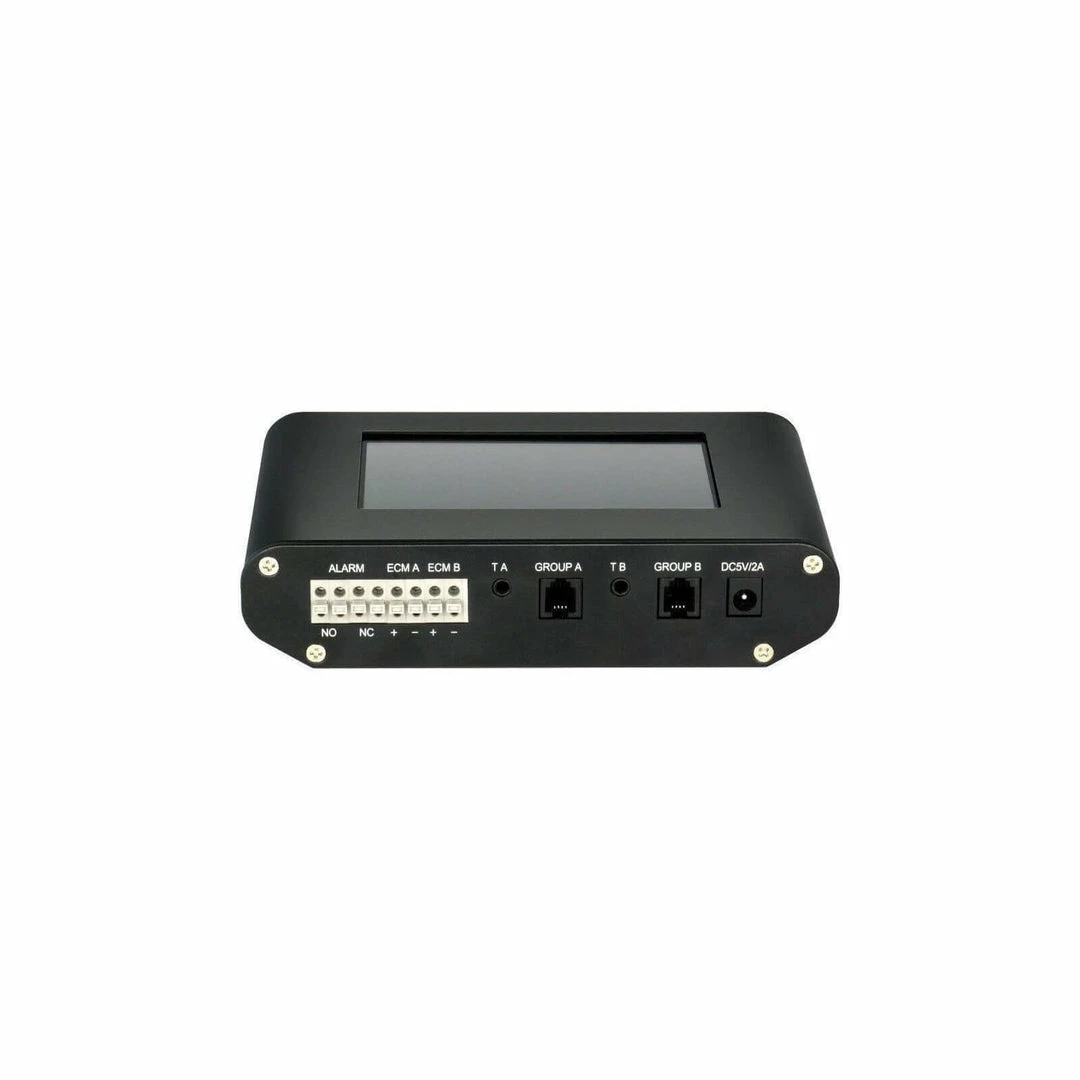

• Alarm port: 2 group, NO/NC
• ECM port: 2 group, A/B;
• Input voltage: 5VDC//2000mA
• Weight: 0.5KG
• Warranty: 3 years



Included:

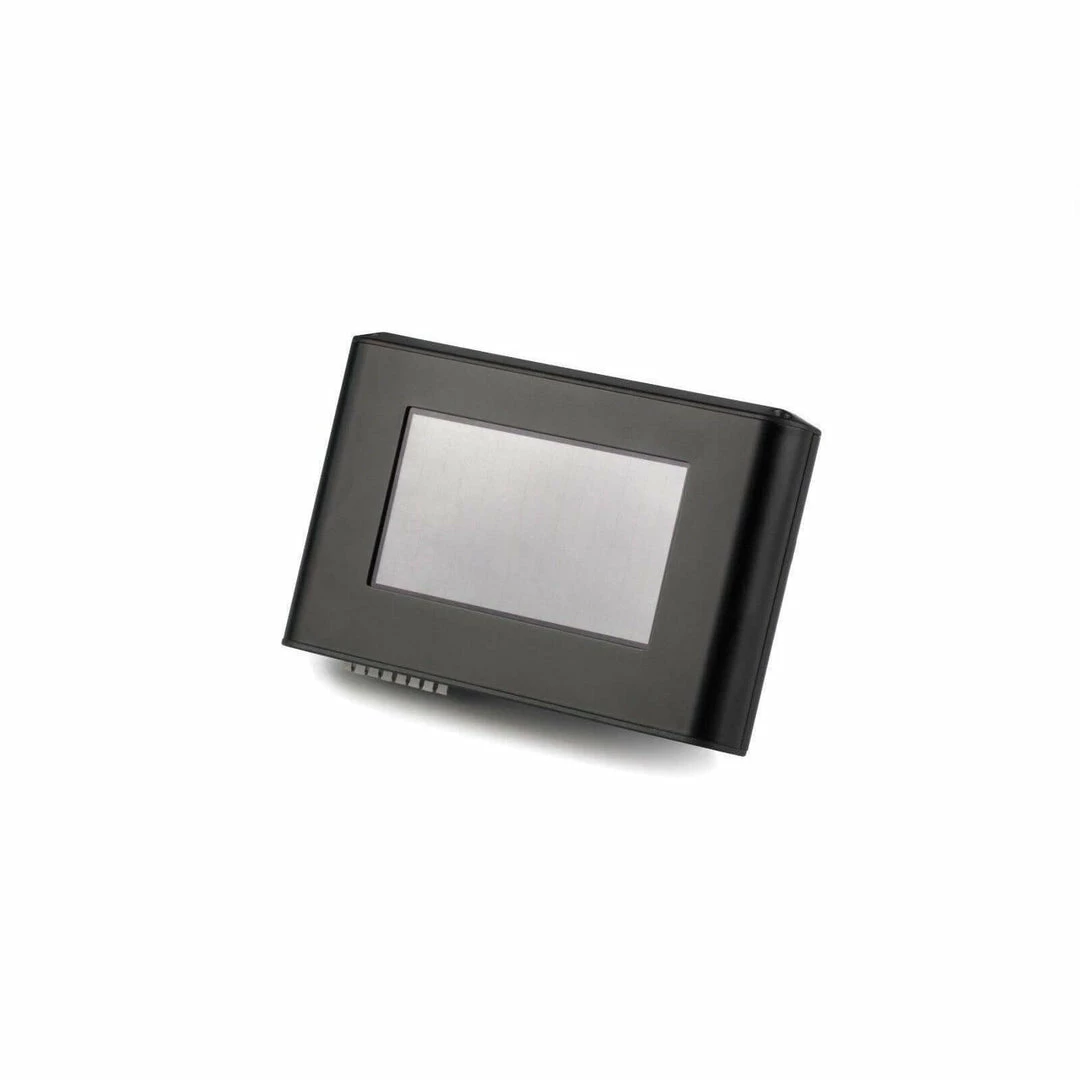

A. Master controller

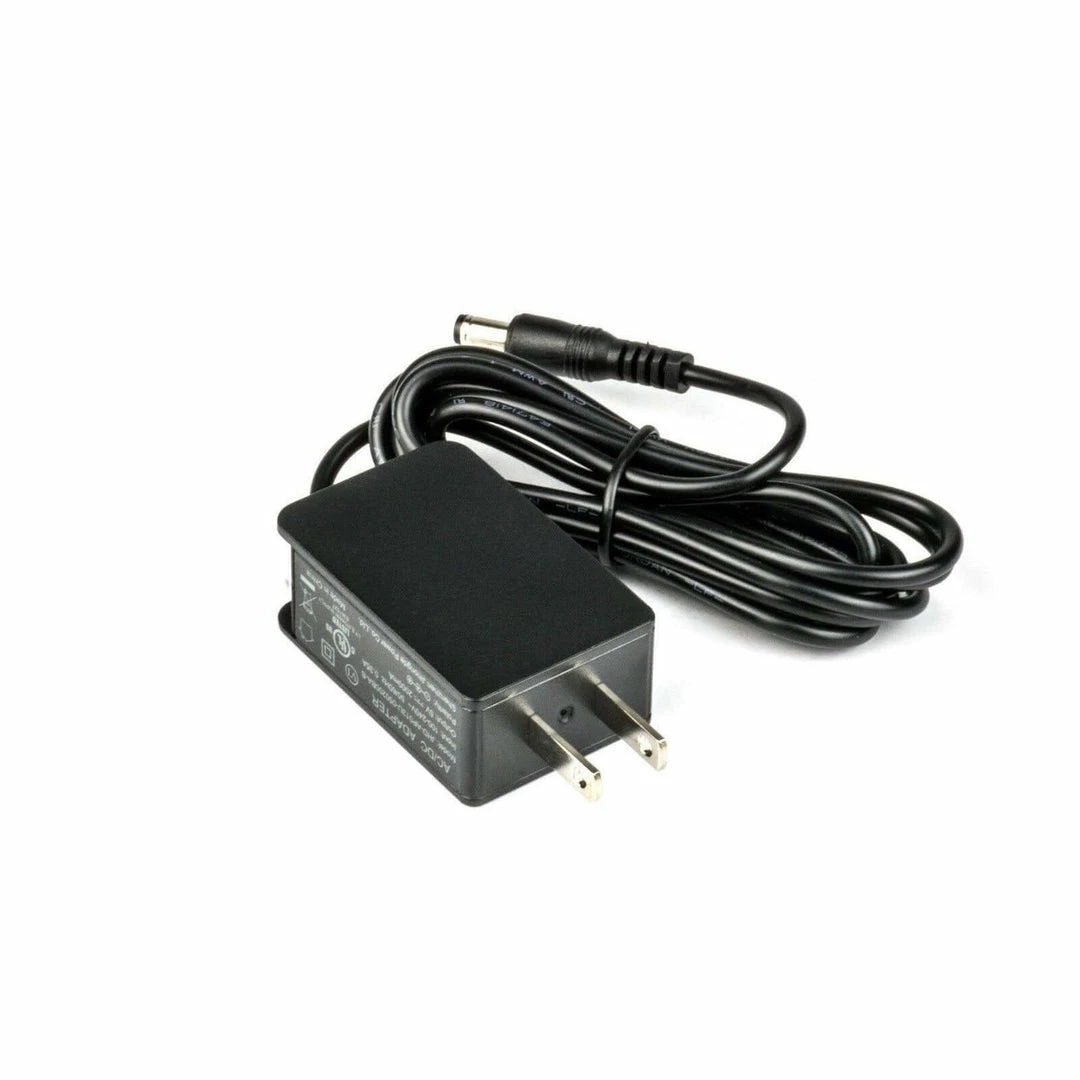

B. Power adapter(DC5V/2000mA)

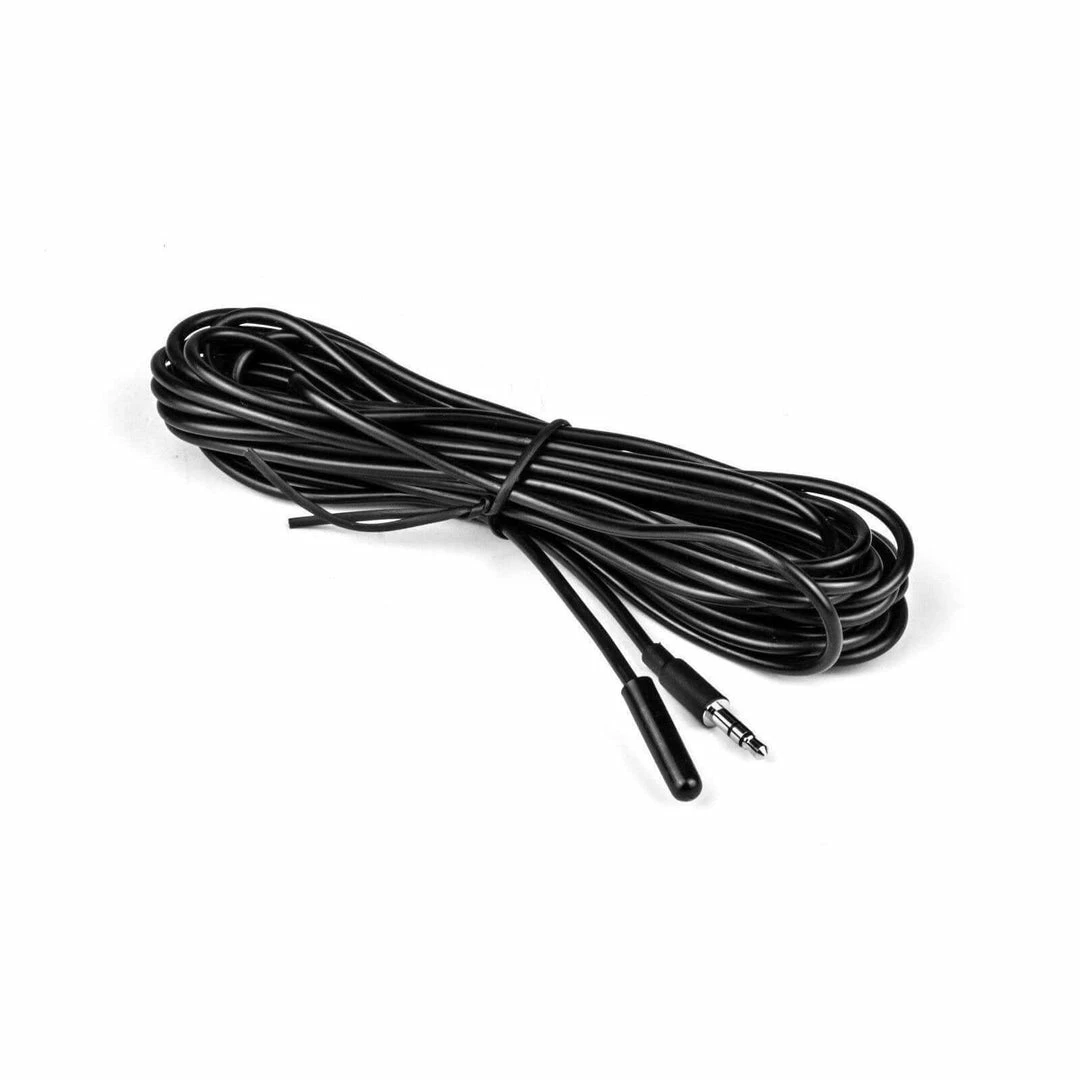

C. (2) 15′ Temperature sensor cord

D. (2) RJ14 (7ft) to connect ROI’s together. One cable from controller to light and the next from 1st light to second light. OR One cable from controller to light in zone 1 and one cable from controller to light for zone 2.

E. User Manual
