Buy 💯 ChilLED Tech Growcraft X3 | 500w LED Grow Light | DIY Kit 🎁

Orders ship same day (placed before noon EST) otherwise, next business day, from Buffalo, NY warehouse!



SAVE MONEY – AVAILABLE AS A DIY KIT!

Commercial Growers! Maximize your yields & profits with ChilLED LED Grow Lights. Switch from HPS to ChilLED and increase your yields & profits 30 – 70+% without adding any additional heat, energy costs or cooling requirements.

Results: Market-leading efficiency combined with our tunable Yield Max spectrum equals unmatched performance.

Quality: Highest build & component quality – never sacrificed for profits. ChilLED grow lights are built to last.

Versatility: Retrofit into your environment with ease. Hands down, ChilLED lights are the most versatile on the market.

TOP FEATURES:

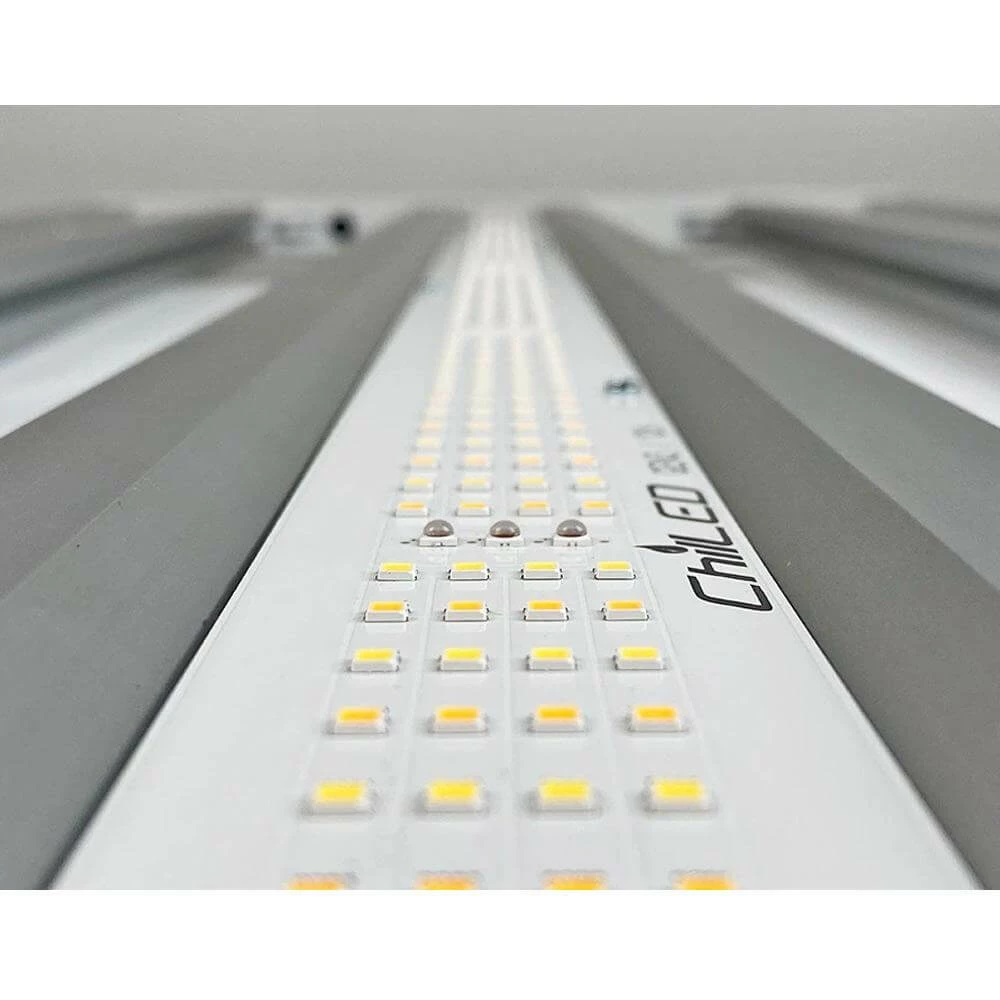

Innovative Rugged LED Light Bar System – Large footprint for even canopy coverage

Slim Profile Passive Cooled Design – Only 1.375in thick & no moving parts

Growcraft Yield Max Spectrum – 3rd Gen 2020 technology – maximum results

Linear Power Control – 25W – 500W dimmable range

Light Engine Efficacy – 3.26 μmole/J – 2.73 μmole/J

Full System Efficacy – 3.08 μmole/J – 2.58 μmole/J

Made In The USA – Finest quality materials and workmanship

3 Year Standard Warranty

BUILD IT YOURSELF!

DIY Friendly Modular Design – If you can dream it, you can build it!

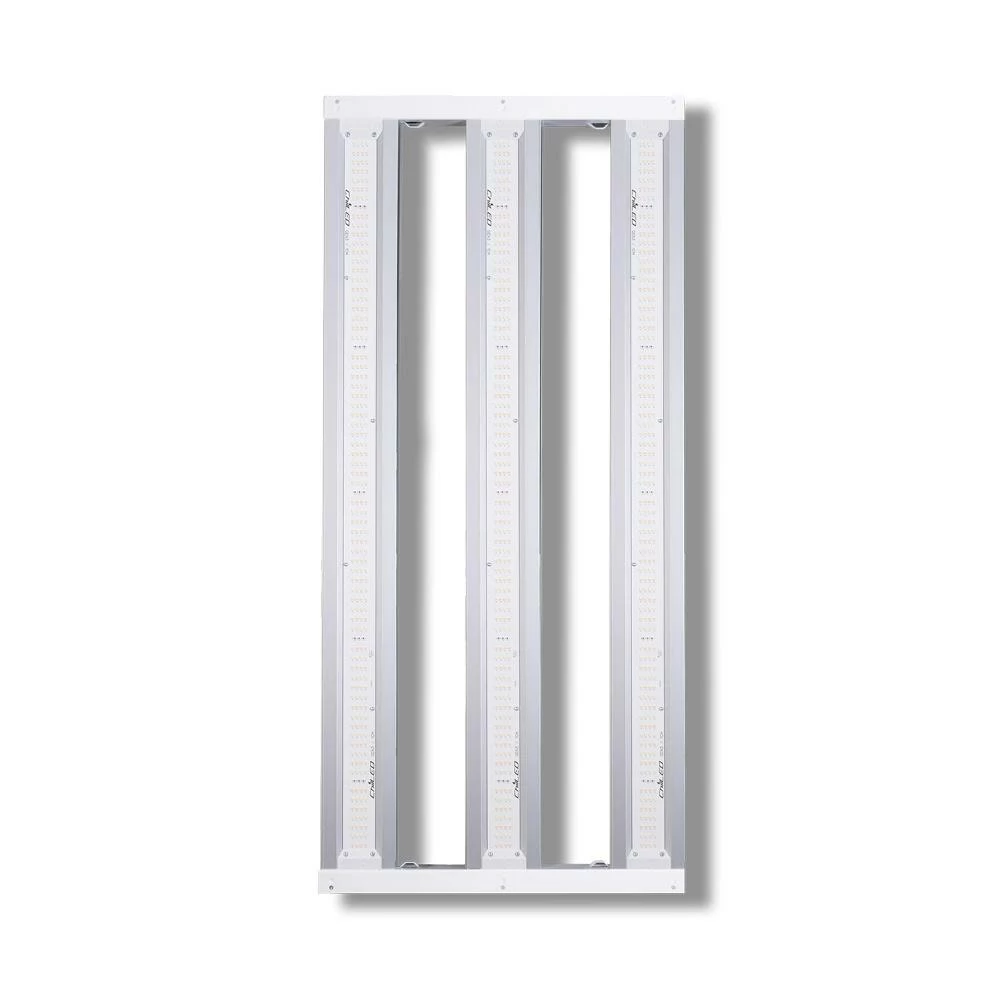

U Frame Structure Platform – Provides ready made framework – no need for drilling or tapping

Innovative Rugged LED Light Bar System – Large footprint for even canopy coverage

Slim Profile Passive Cooled Design – Only 1.375in thick & no moving parts

Growcraft Yield Max Spectrum – 3rd Gen 2020 technology – maximum results

Linear Power Control – 25W – 500W dimmable range

Light Engine Efficacy – 3.26 μmole/J – 2.73 μmole/J

Full System Efficacy – 3.08 μmole/J – 2.58 μmole/J

Made In The USA – Finest quality materials and workmanship

View Assembly Instructions ➡️

Growcraft X2 – 330 Watt DIY LED Grow Light Kit Includes:

2 x Growcraft DIY U-Frame – 2×4
2 x Growcraft DIY U-Frame Cover – 2×4
1 x Growcraft Power Distribution PCB – 2×4
3 x Growcraft 40in Heatsink
3 x Growcraft 40in LED Board
1 x M3 – 6mm Plastite PCB Screw – 25 pack
1 x M3 – 8mm Plastite PCB Screw – 25 pack
1 x M3 – 5mm Countersunk Torx Screw – 25 pack
1 x M4 – 14mm Torx Screw – 25 pack
3 x Growcraft PCB End Cover 2 Pack – ChilLED WHITE
1 x Growcraft Strain Relief Cable Gland – Black
1 x 20 AWG Red & Black Solid Core Wire Pair – 6ft
1 x Growcraft 48Vdc LED Power Cable – 7ft
1 x 120VAC USA Power Cord – 6.5ft

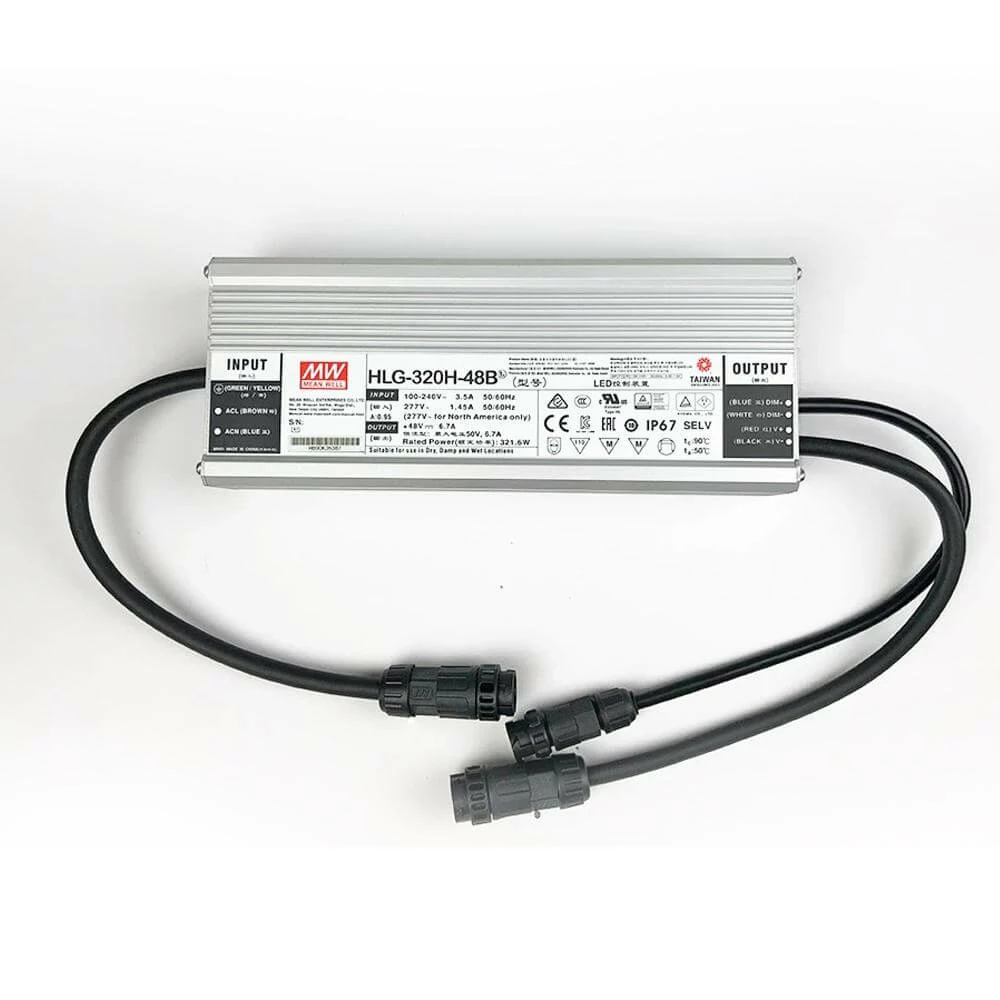

1 x MEAN WELL HLG-320H-48B LED Driver
2 x WAGO 221-412 Wire Splicing Connector (5 Pack)
1 x Dimmer Pot
1 x Growcraft DIY U-Frame Hole Plug
4 x Rope Ratchets

Optional Items:

3 x Growcraft PCB End Cover 2 Pack – ChilLED BLUE
3 x Growcraft PCB End Cover 2 Pack – ChilLED RED

Spectrum:

PAR:

3’x5′ Canopy Area – 12 in Hanging Height Average PPFD – 943 µmol/(m2s)

3’x5′ Canopy Area – 18 in Hanging Height Average PPFD µmol/(m2s)

3’x5′ Canopy Area – 24 in Hanging Height Average PPFD – 746 µmol/(m2s)

Comparison:

SPECS:

Input Power Draw: 500W

Input Voltage Range: 90-305 VAC

120 VAC Current Draw: 4.2 Amps

208 VAC Current Draw: 2.4 Amps

240 VAC Current Draw: 2.1 Amps

277 VAC Current Draw: 1.8 Amps

Power Driver: Mean Well HLG-480H-48B

AC Power Cord Length: 6.5 ft

DC Extension Cord Length: 7 ft

Dimming Range: 5-100%

Light Engine Efficacy: 3.26 μmole/J – 2.73 μmole/J

Power Driver Efficiency: 94.5% @ 230 VAC

Full System Efficacy: 3.08 μmole/J – 2.58 μmole/J

Operating Temperature Range: 41°F – 95°F | 5°C – 35°C

Operating Humidity Range: 10 – 90% Non-Condensing

Generated Heat Load: 1,706 BTU/Hour

Minimum Head Space Above Fixture: 10 in

Recommended Hanging Height: 18-30 in

Coverage Area: 3 x 5 ft

Start Slow – Growcraft lights have VERY high light output and unless your plants are already acclimated to high light intensity, it is best to start slow with the light hanging high and possibly also dimmed. Then monitor plant reaction over a few days and slowly adjust as needed.

Fixture Dimensions: 42.5 in x 19.5 in x 1.375 in

Fixture Weight: 17 Lbs
